Four Row Cylindrical Roller Bearings

Industrial bearing, Roller & cylindrical bearings

Four row cylindrical roller bearings are exclusively designed and used as roll-neck bearings for back-up rolls, intermediate rolls and work rolls of rolling mill, also applied in straightening machine and bending machine. Because they are made of robust materials through advanced processing technique, the four row cylindrical roller bearings feature high load capacity, adequate fatigue life, better impact resistance and high precision.

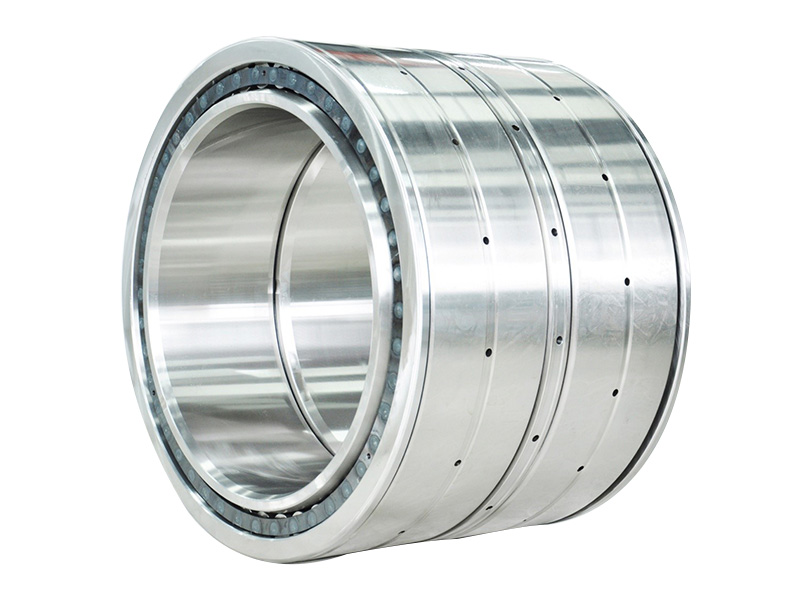

  • Four Row Cylindrical Roller Bearings

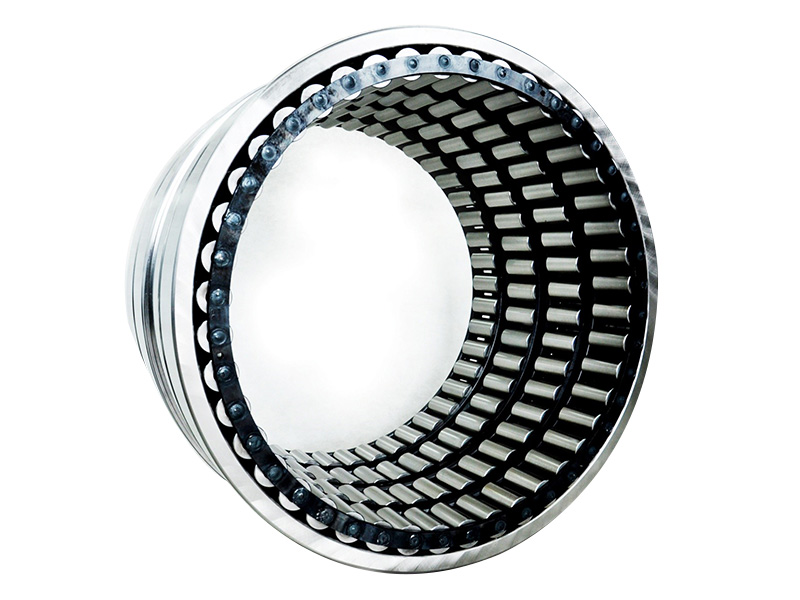

    Four row cylindrical roller bearing with pin-type cage, extra-large size
    Inquiry
  • Four Row Cylindrical Roller Bearings

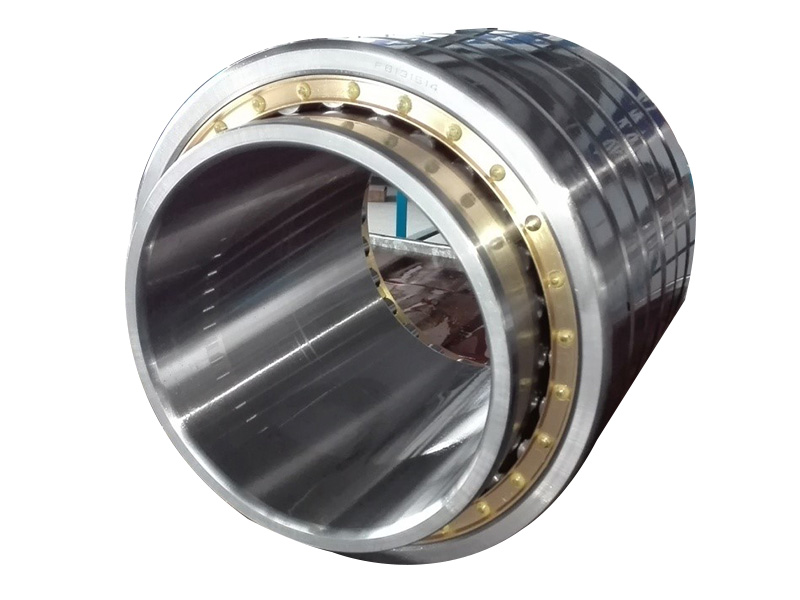

    Four row cylindrical roller bearing with pin-type cage, extra-large size (outer ring assemblies)
    Inquiry
  • Four Row Cylindrical Roller Bearings

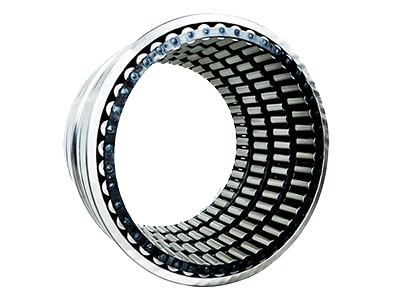

    Four row cylindrical roller bearing, middle & small size
    Inquiry
  • Four Row Cylindrical Roller Bearings

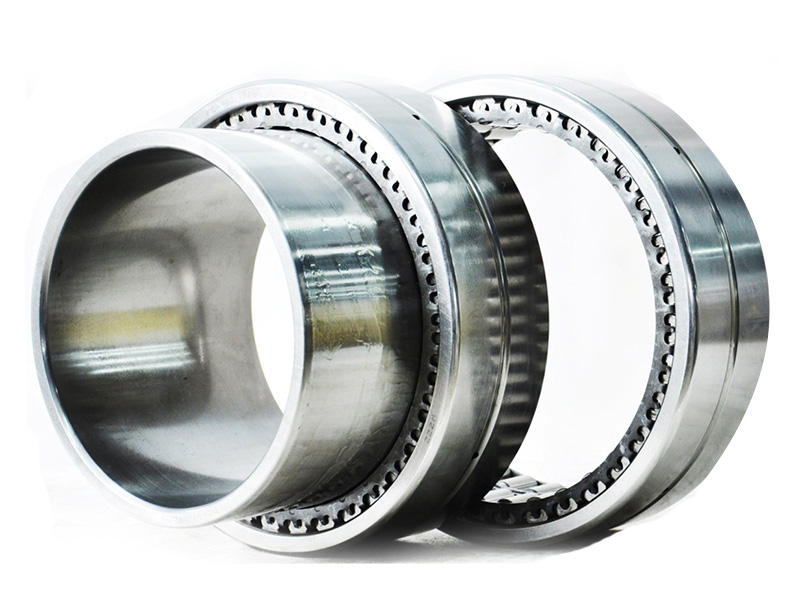

    Four row cylindrical roller bearing, middle & small size
    Inquiry
  • Four Row Cylindrical Roller Bearings

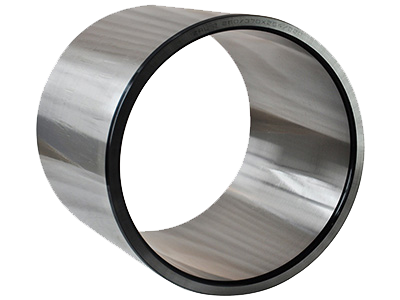

    Inner ring of four row cylindrical roller bearing (custom made)
    Inquiry
  • Four Row Cylindrical Roller Bearings

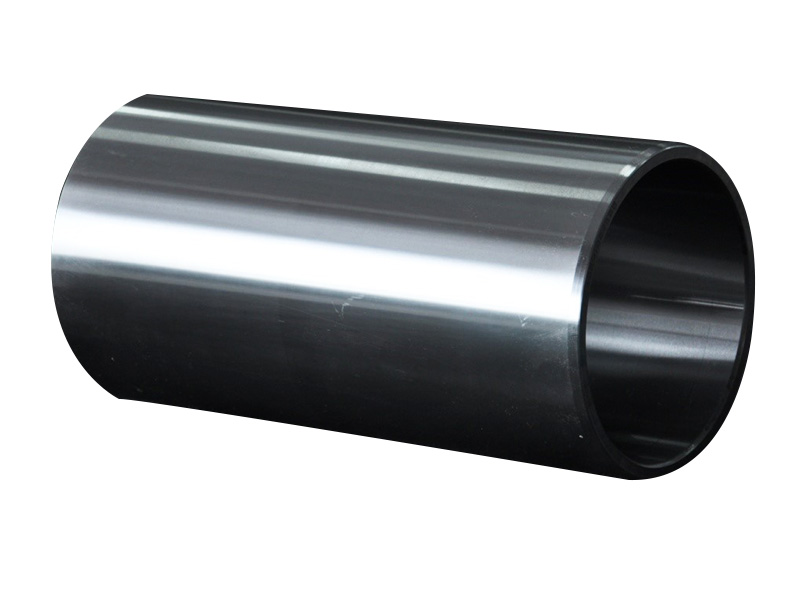

    Inner ring of four row cylindrical roller bearing
    Inquiry
Specifications
Series Inner Diameter (mm) Variant Structure
Interference fit on the roll neck
FC 80～1200 /2LS, E, YA3
FCD 80～1200 /2LS, E, YA3
FCDP 80～1200 /2LS, E, YA3
With tapered bore
FC 105～950
FCD 105～950
FCDP 105～950
Clearance fit on the roll neck
FC 115～1200
FCD 115～1200
FCDP 115～1200

Since its establishment in 1994, WZZZ has been engineering and manufacturing a broad range of rolling bearings to meet your needs. The experience gained over the years has enabled us to provide high quality engineered bearings, particularly in production of rolling element bearings as roll neck bearings for rolling mills. And we continuously improve the reliability and efficiency of these rolling mill bearings to satisfy your demanding requests. We always insist on becoming customer trusted custom bearing manufacturer and supplier.

Get In Touch

If you are interested in our products and want to know more details, please leave a message here.
