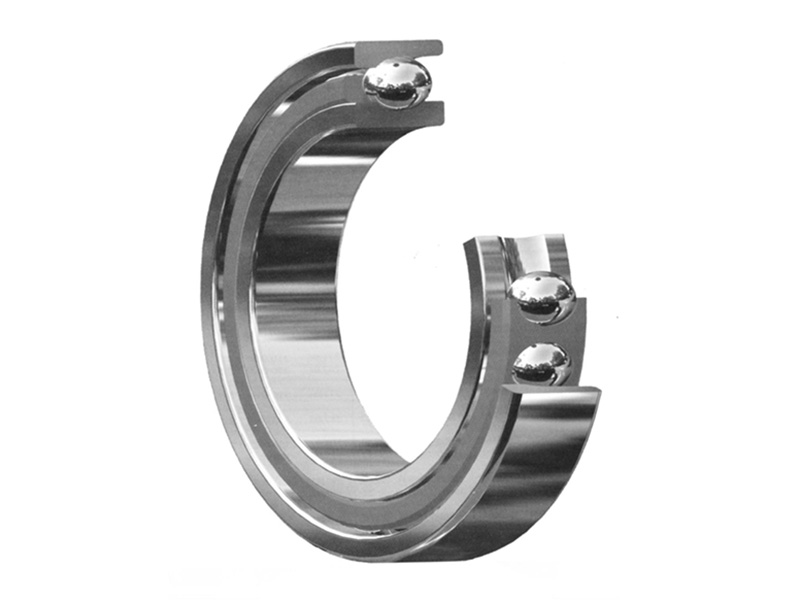

Angular contact ball bearings are designed to accommodate combined radial and axial loads simultaneously, also can accommodate axial loads only. These ball bearings are suited to high speed and high precision applications.

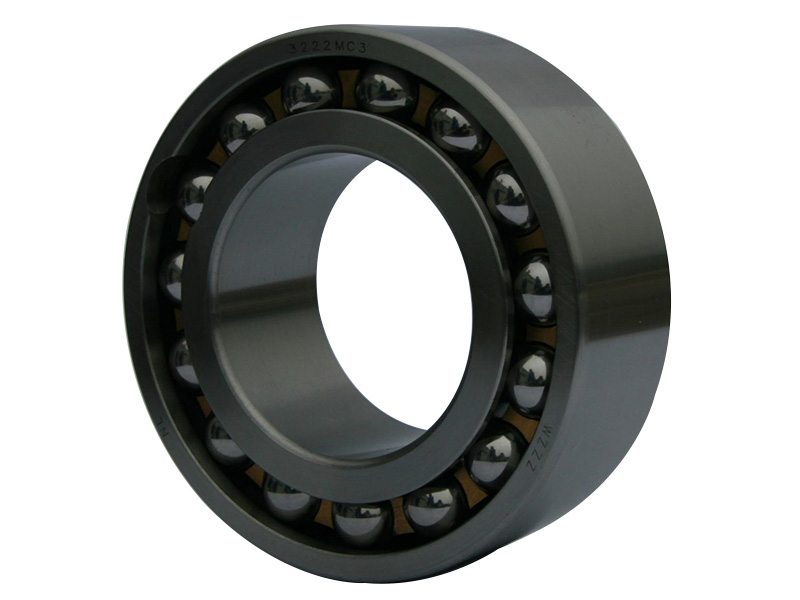

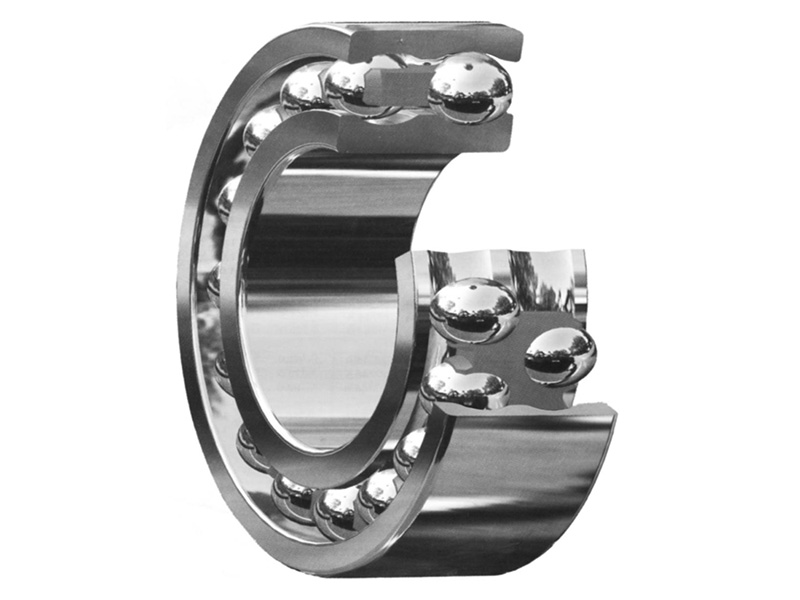

Double row angular contact ball bearings can support combined loads where radial direction is predominant, and also support moment loads. This bearing can limit axial displacement of the shaft or housing in both directions.

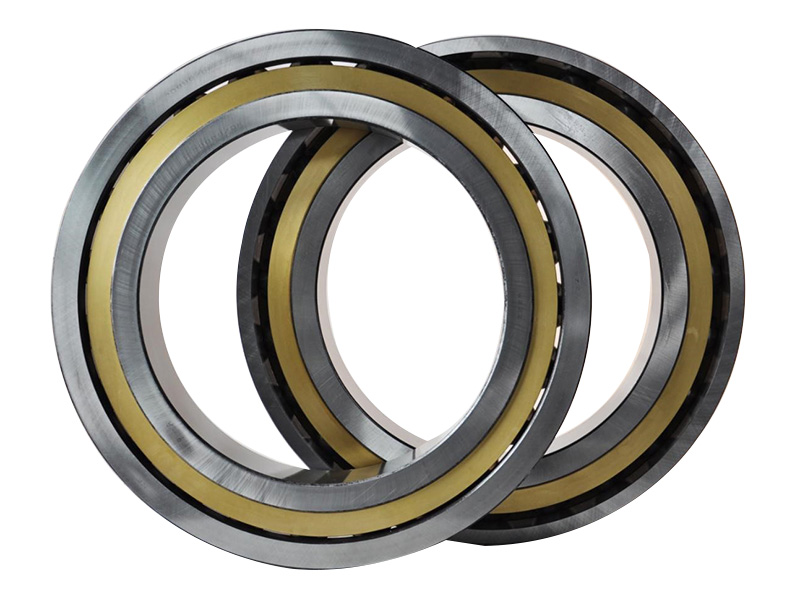

Item Contents | Matching arrangement | ||
Back-to-back (DB) | Face-to-face (DF) | Tandem (DT) | |
Load direction | ← ↑ → | ← ↑ → | ← ↑ |
Tandem | Great | Medium | Small |
Note: Also can be matched in more combinations.
Series Contact angle | Inner Diameter (mm) | ||
α=15° | α=25° | α=40° | |
7000C | 7000AC | 7000B | 90~1250 |
7200C | 7200AC | 7200B | 90~600 |
7300C | 7300AC | 7300B | 90~600 |
71800C | 71800AC | 71800B | 360~1250 |
71900C | 71900AC | 71900B | 180~1000 |
Series Contact angle | Inner Diameter (mm) |
α=30° | |
3200A | 100~400 |
3300A | 100~400 |
α=40° | |
4000/DC | 120~600 |
4900/DC | 160~600 |
α=45° | |
4000D | 120~600 |
4900D | 160~600 |
