CARB Circular Roller Bearings

Industrial bearing, Roller & cylindrical bearings

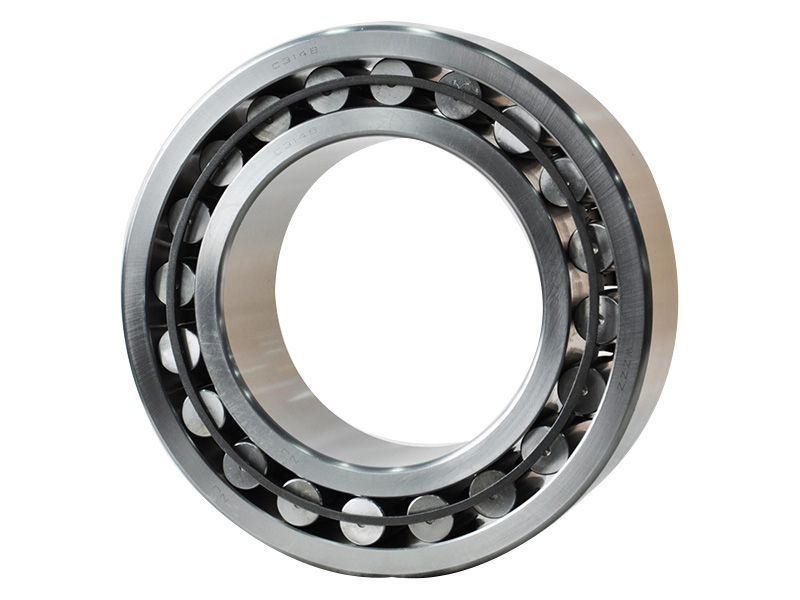

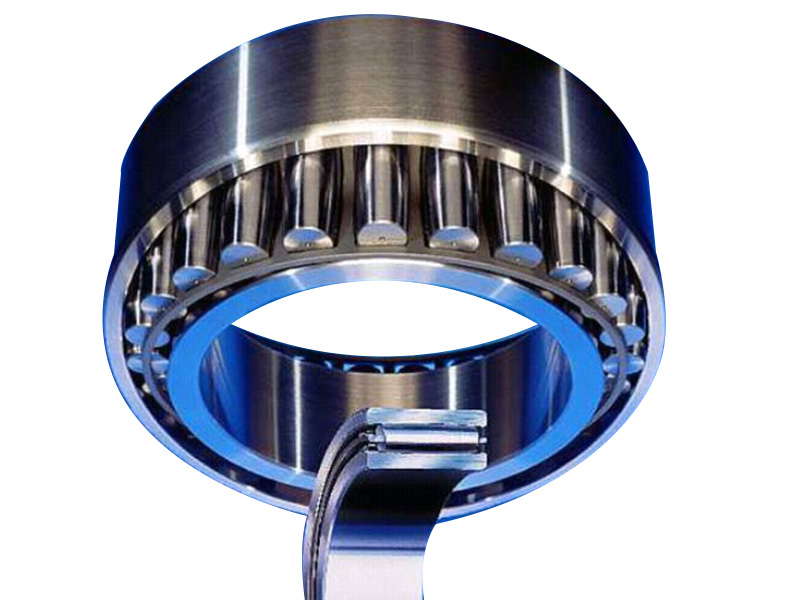

CARB Circular Roller Bearings are single row self-aligning roller bearings with a compact structure. These bearings have high loading capacity and accommodate exclusively radial loads, which are typically used as floating bearings. The compact structure design of the bearing assists to save both space and weight, greatly reducing manufacturing cost. CARB Circular Roller Bearings allow lightweight bearing configurations while provide the same or even better performance, featuring high reliability and long service life. The inner and outer rings of CARB Circular Roller Bearings must be fixed.

  • CARB Circular Roller Bearings
  • CARB Circular Roller Bearings
Specifications
Series Inner Diameter (mm) Variant Structure
C2200 100～220
C3000 110～1000 Full complement
C3100 100～1000 Full complement
C4000 100～600 Full complement
C4100 100～200 Full complement
C3900 360～1180
Seal structure
C4000V 100～200
C4100V 100～200

Full complement roller type
Series Inner Diameter (mm) Variant Structure
Single row
1800V 150～1000 NC, NCF, NJ
2300V 80～1000 NC, NCF, NJ
2800V 80～1000 NC, NCF, NJ
2900V 80～1000 NC, NCF, NJ
3000V 80～1000 NC, NCF, NJ
Double row
4800V 150～530 NNC, NNCF, NNCL, NNF
4900V 80～530 NNC, NNCF, NNCL, NNF
5000V 80～530 NNC, NNCF, NNCL, NNF

Since its establishment in 1994, WZZZ has been engineering and manufacturing a broad range of rolling bearings to meet your needs. The experience gained over the years has enabled us to provide high quality engineered bearings, particularly in production of rolling element bearings as roll neck bearings for rolling mills. And we continuously improve the reliability and efficiency of these rolling mill bearings to satisfy your demanding requests. We always insist on becoming customer trusted custom bearing manufacturer and supplier.
