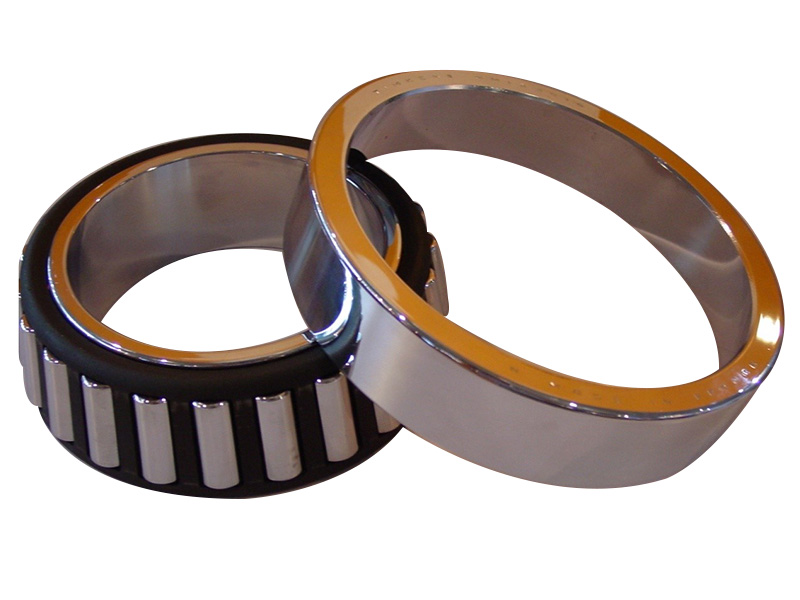

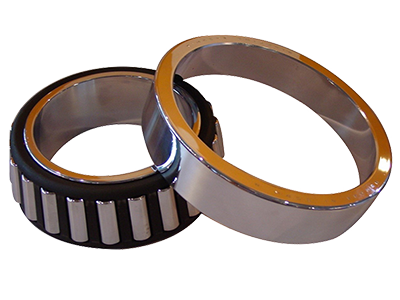

Tapered roller bearings are capable of withstanding radial loads or combined radial and axial loads. The outer ring of bearing is detachable and easy to assembly. During the process of installing and using, it is possible to adjust radial clearance and axial clearance, and pre-interference installation.

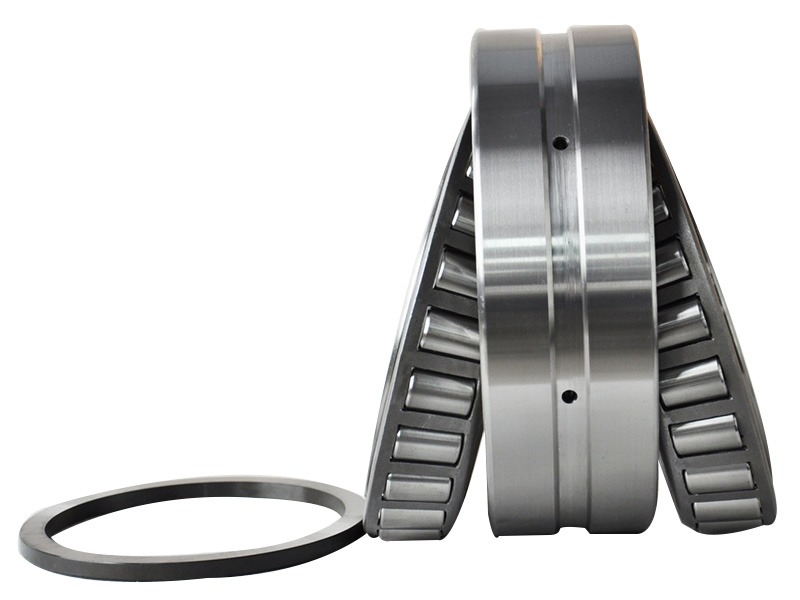

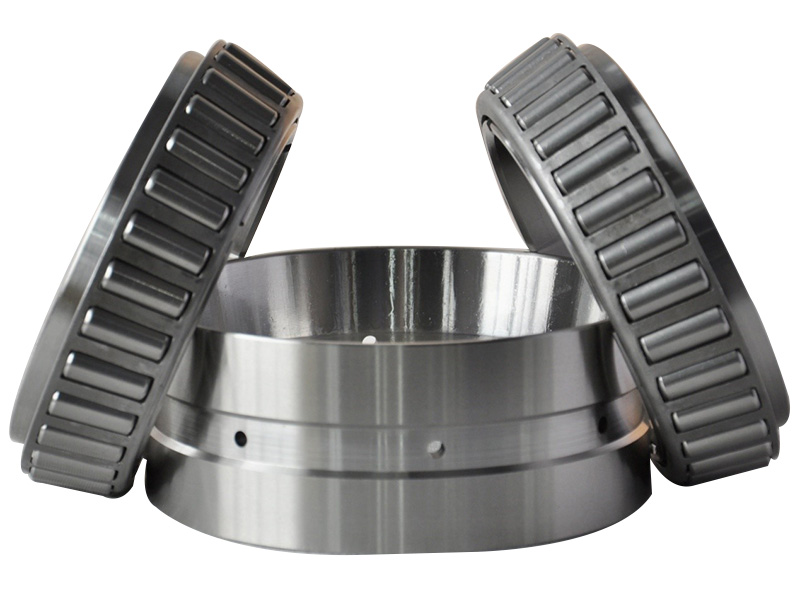

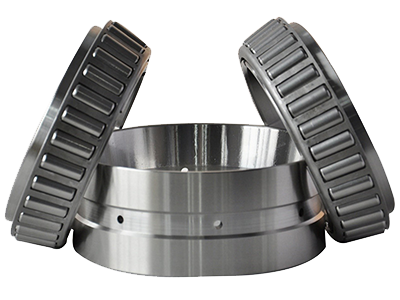

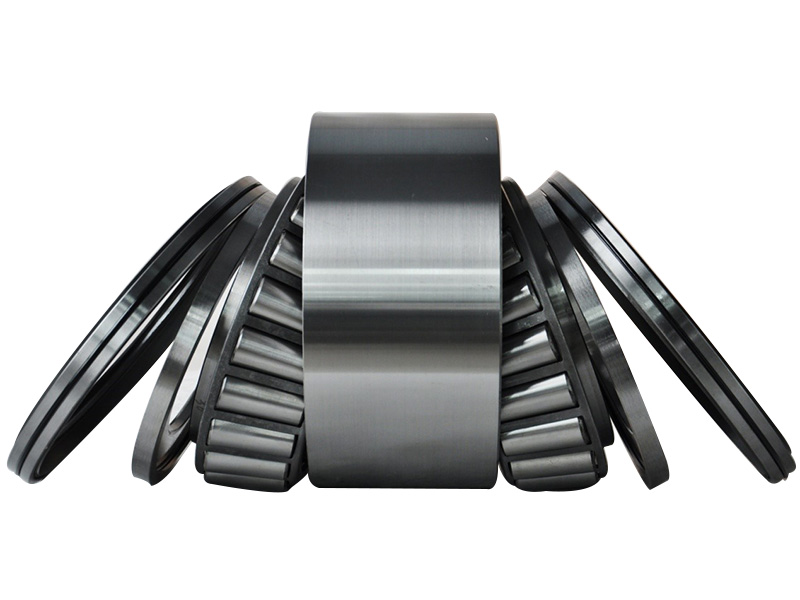

Double row tapered roller bearings can accommodate radial loads, while withstand bidirectional axial loads, commonly used in medium and low speed operations. Besides, steep contact angle double row tapered roller bearings and sealed double row tapered roller bearings are also available at WZZZ.
Series | Inner Diameter (mm) |
Single row, Metric series | |
32900 | 120~1270 |
32000 | 100~1270 |
30200 | 100~1270 |
30300 | 100~1270 |
31300 | 120~1270 |
32000 | 100~1270 |
32200 | 100~1270 |
32300 | 100~1270 |
33000 | 100~1270 |
33100 | 100~1270 |
33200 | 100~1270 |
Single row, Inch series | |
Dimension range | 101.600~1016.000 |
Double row, Metric series | |
350600 | 100~1250 |
351000 | 300~1250 |
351100 | 300~1250 |
351900 | 300~1250 |
352000 | 120~1250 |
352100 | 110~1250 |
352200 | 100~1250 |
352900 | 130~1250 |
Double row, Inch series | |
IDTB | 152.400~939.800 |
Double row, Seal structure | |
Dimension range | 100~1250 |
Double row with steep contact angle | |
DTSA | 200~900 |
Double row with tapered bore, Inch series | |
IDTT | 152.400~571.500 |
Since its establishment in 1994, WZZZ has been engineering and manufacturing a broad range of rolling bearings to meet your needs. The experience gained over the years has enabled us to provide high quality engineered bearings, particularly in production of rolling element bearings as roll neck bearings for rolling mills. And we continuously improve the reliability and efficiency of these rolling mill bearings to satisfy your demanding requests. We always insist on becoming customer trusted custom bearing manufacturer and supplier.
If you are interested in our products and want to know more details, please leave a message here.
